CellBIM brings your BIM and 2D drawing files directly into your Microsoft Excel® Spreadsheets. “Democratise” your BIM and 2D drawing Processes and make BIM and 2D accessible to anyone, everywhere with or without cloud access! Quick and Simple!

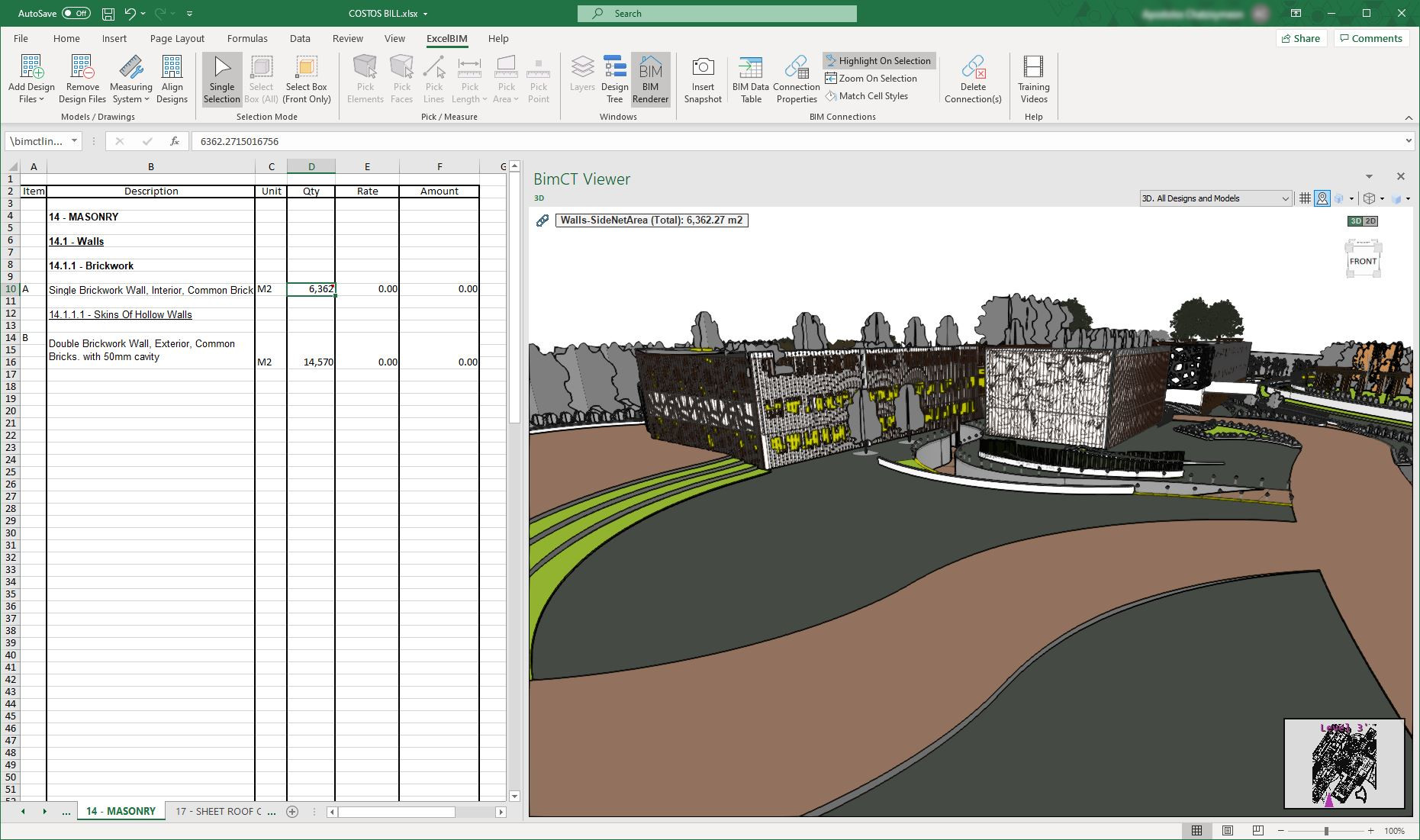

Use Drag and Drop to Interact with BIM Models, Perform Quantity Takeoffs in 3D and 2D and generate interactive BIM Data Tables.
You can select elements through a selection window or the auto-select function. Drag and drop them onto a Cell to create an association between elements and the cell. You can also use element quantities or metadata.
CellBIM’s unique BIM Datatable command let’s you create the tables you need from BIM Metadata tables. You can also use CellBIM’s calculated quantities or the authoring tool quantities for your estimates or cost plans.
Free CellBIM (*.XLSx) & IFC Reader.
Extension to the .XLSx format.
Extension to the .XLSx format.
Work with BimCT & Microsoft 365.
Load IFC files
Load BIM files (IFC, DWG, Revit, Navisworks, Sketchup, Bentley, 3D Assets etc)
Load 2D drawing files (PDF, DWG, DGN, Raster Images)
Connect to AutoDESK BIM 360 Cloud and download compatible file formats
Upload Models and Connections to the Cloud for use with Microsoft 365 apps and the Web-AddIn
High Performance OpenGL 4.5 Renderer
(Desktop Add-In Only)Fallback to DirectX 11 or WebGL2 renderer
Full Shaders Support (Transparent, Realistic, Hidden Lines, Shadows etc)
Pick Elements by Rubberband
Pick Measurements by Rubberband
Pick BIM Elements
Pick BIM Faces and Lines
Measure Areas, Volumes, Lengths and Points
Object SNAP to commonly needed points

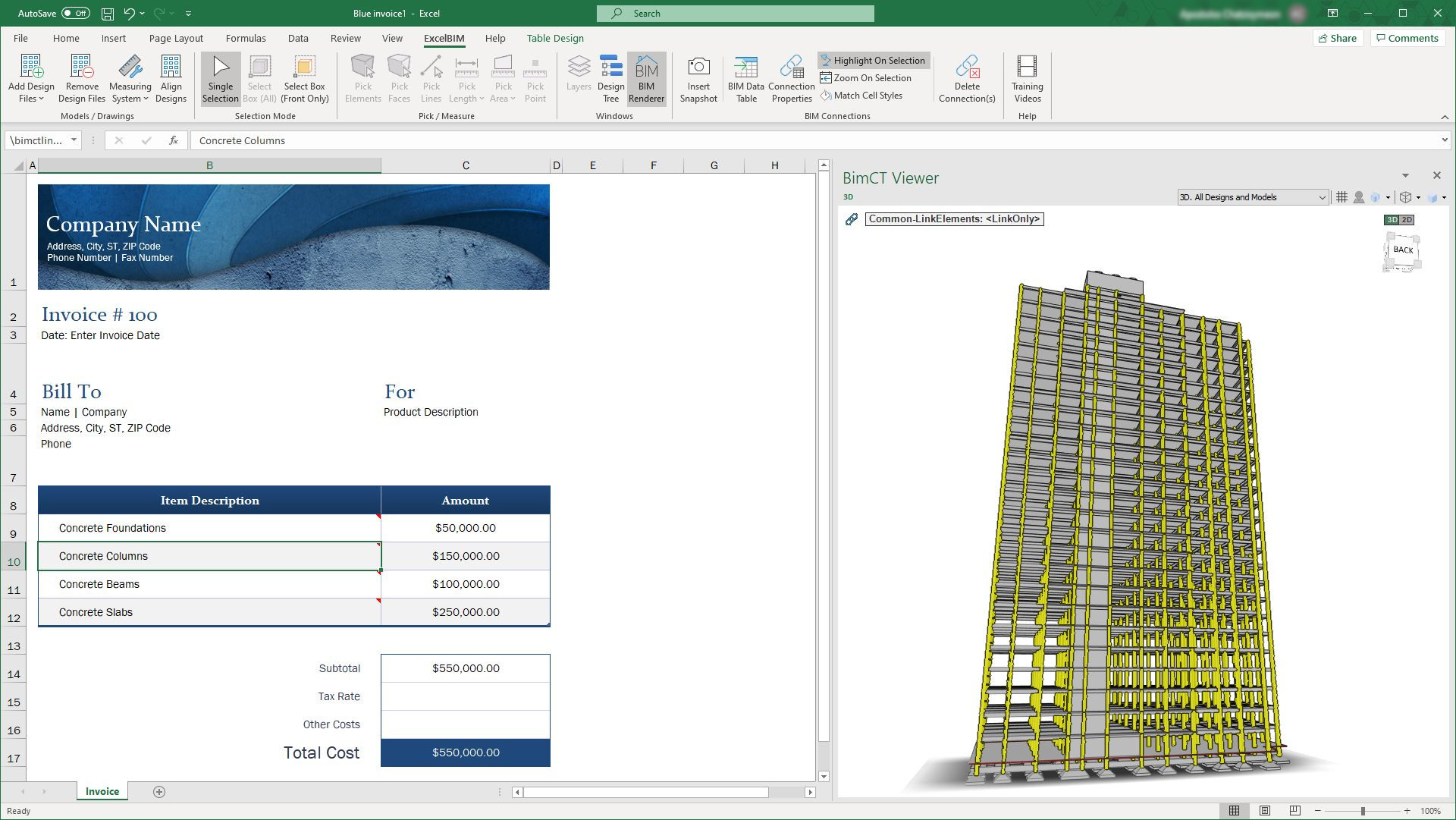

Use Drag and Drop to Link Cells with Design Data
(Desktop Add-In Only)Link Elements and Properties with Cells
Link Quantity Takeoffs with Cells and Formulas
Connection Creation Formulas
Parametric Query Based Quantity Takeoffs
Colorize Connections (Elements, Faces, Lines, Areas, Lengths, Points)
Auto-Match Cell Styles with Connection Colors
Update Design Model Changes
Use Drag and Drop to Create Excel Tables from Model Metadata
Create Clash Detection Tables
Coming SoonCalibrate, scale, move and align multiple design files on a single 3D scene
Calculate Quantities of BIM Elements using Geometry
Re-Classify BIM Elements using Machine Learing
Coming Soon Coming SoonAdd new Design 3D Elements
Coming Soon Coming Soon Coming SoonEdit BIM Elements and Properties
Coming Soon Coming Soon Coming SoonExport Models to IFC
Coming Soon Coming Soon Coming SoonEmbed all your 2D drawings and 3D models inside your spreadsheets. Work interactively with them and avoid storing and sharing multiple files.
The easiest and more effective solution for Excel users that use drawings or 3D models for their everyday tasks.
